Performance Specifications

1.Transmitter headstage: headstage weight:3g, headstage size: 15X15X22mm

2.Excitation wavelength: 470mm, record the calcium signal of neurons  in the animal brain. Filter band 445~490nm

3. Emission wavelength: filter band 500~550nm

4. Excitation power: 10~300μW

5. Transmission distance: 2m

6. Receiver I/O: 1xphotometry analog out, 1x geneal purpose analog in 0~5V

7. Detect brain neuronal activity on free-moving animals

Instrument Applications

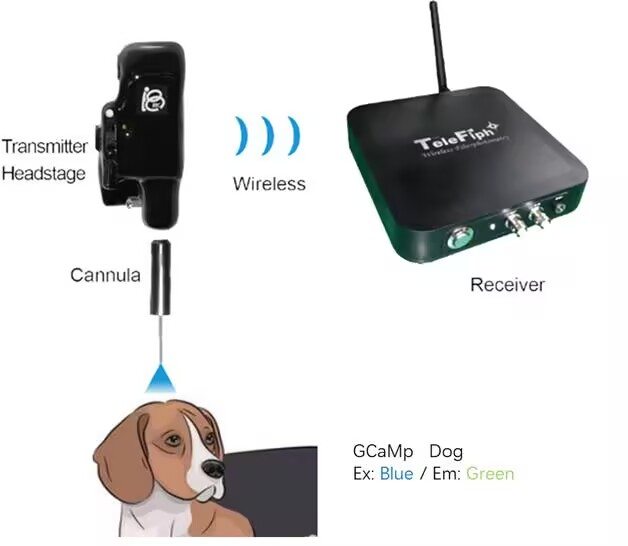

Wireless fiberphotometry, includes all required components for fiber photometry - optic fiber, filter cube, light source, photo detector - and also wireless transmission circuit, in the very smal 3g body.

TeleFipho definitely will not block free behavior of your animals, detect the specific neuron activities in awake animals.
