Model: Mindray V60 ISOFLURANE Anesthesia Machine, suitable for small mammals such as dogs, cats, and rabbits.

1.Parameters

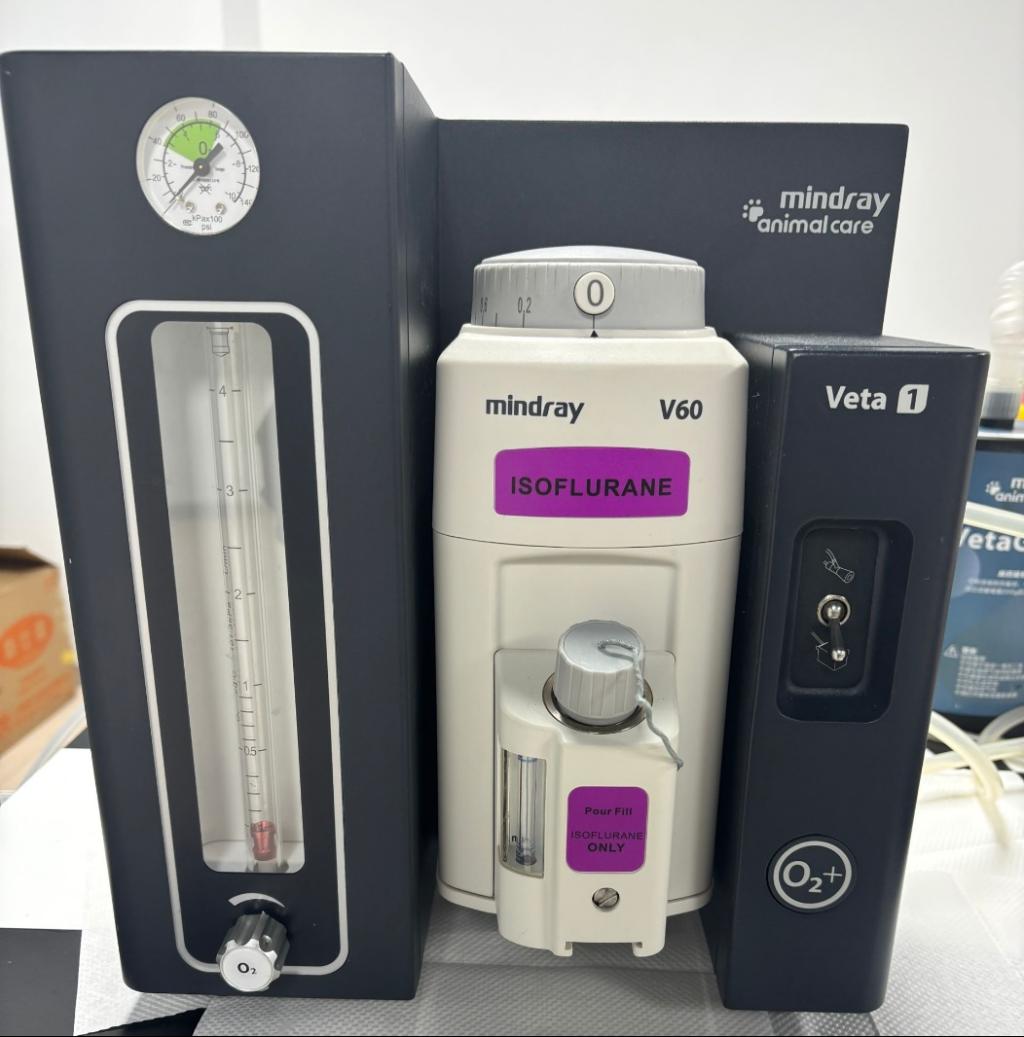

l Left-side device: A gas cylinder equipped with a pressure gauge. There is a knob on the gas cylinder to control the gas flow rate. The pressure gauge shows the current gas pressure.

l Middle device: The anesthesia machine, which is used to provide isoflurane, a commonly used animal anesthetic. There is a knob on the device to adjust the concentration of the anesthetic.

l Right-side device: The oxygen supply device, which is used to supply oxygen to ensure that the animal has sufficient oxygen during the anesthesia process. There is a knob on the device to adjust the oxygen flow rate.

2.Operating Range

l Temperature: During operation, it is 10 to 40°C; during storage (empty), it is -20 to 60°C; during transportation (empty), it is -20 to 60°C. The humidity during operation is 15% to 95%, non-condensing; during storage, it is 10% to 95%, non-condensing. The atmospheric pressure during operation and when closed (filled, with the control knob in the "0" position) is 70 to 106 kPa, and during storage (empty), it is 50 to 120 kPa.

l Concentration: Isoflurane 0 to 6%, Sevoflurane 0 to 8%.

l Concentration accuracy range: In the operating environment, when the set concentration is 6%, the accuracy is ±0.20 vol.% or ±20% rel., whichever is greater; when it is greater than 6%, the accuracy is ±0.25 vol.% or ±20% rel., whichever is greater.
